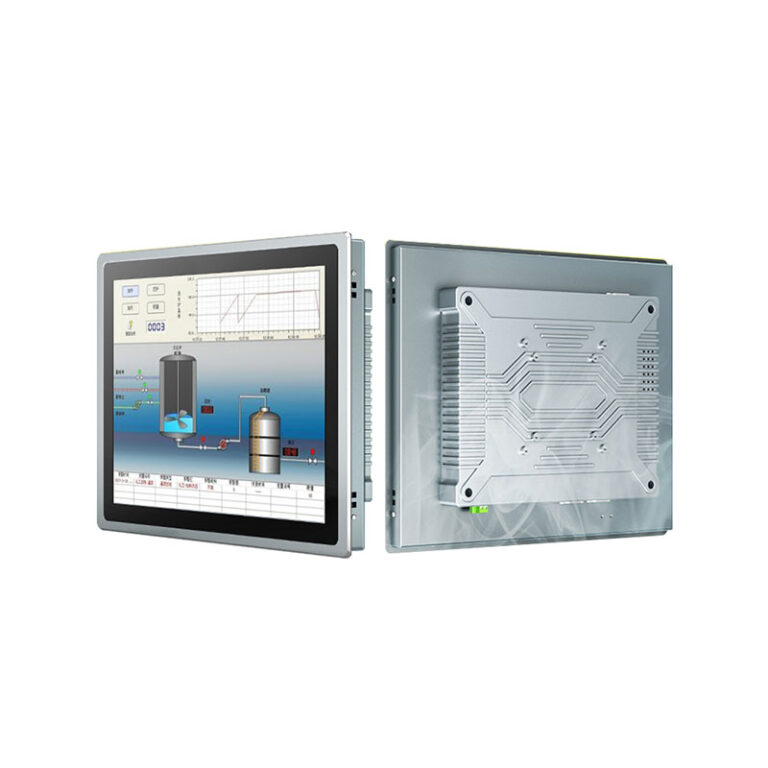

The 7” Panel PC in the Z series is designed for applications that require a compact screen. It is powered by an Intel Celeron CPU with a fanless, passive cooling system, housed in durable aluminum die-casting to ensure optimal performance.
This model features an industrial display with an IP65 rating, making it resistant to dust and water. Users can select a version without a touchscreen layer or choose between a projected capacitive (PCAP) or resistive touchscreen. The touchscreen is bonded directly to the display, offering precise responsiveness to touch interactions and enhanced visual clarity.

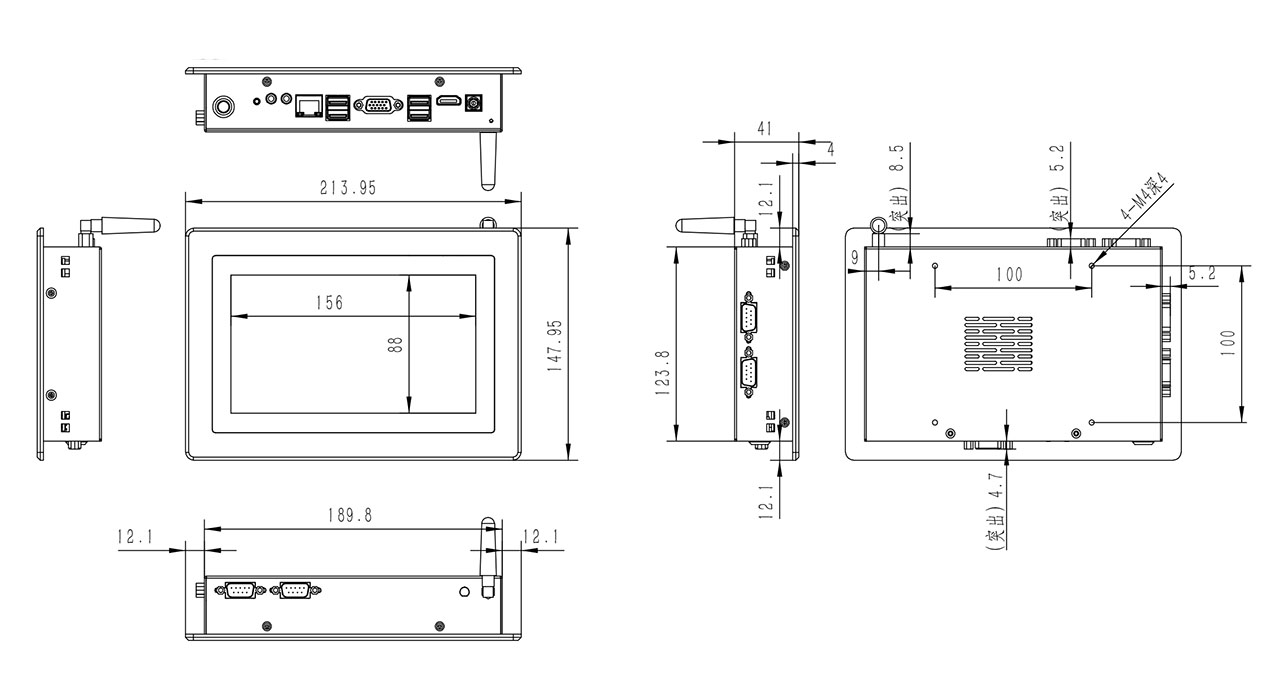

There are two color options for the housing: silver and black. The back of the housing features a 75x75mm/100x100mm embedded screw pattern for VESA installation. Additionally, it supports embedded installation into a panel cutout.
For Power over Ethernet – Enabling Industrial Automation Control: Pinnacle has optional PoE to allow for single cable installation without the need to run separate AC or DC power. Simply drop in the TP-4800-12 and get it running with network connectivity and power in a single cable in a few minutes.

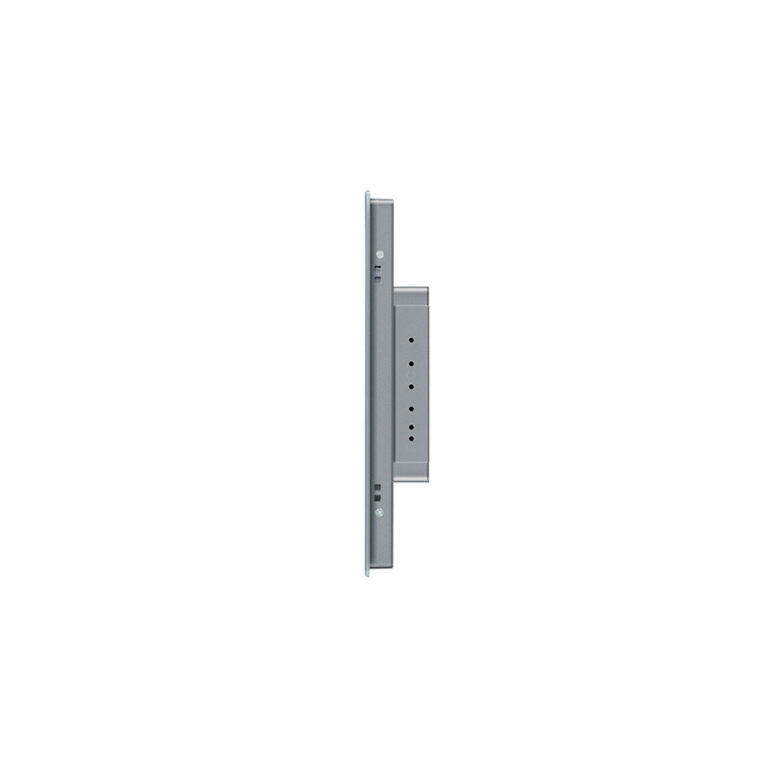

For Most Compact Presentation – Shallow Wall Mounting: Pinnacle is the most compact panel PC ever. You can fit it into tight control panels and take up less of that valuable real estate. Show your customers more of your content, and less black bezel.

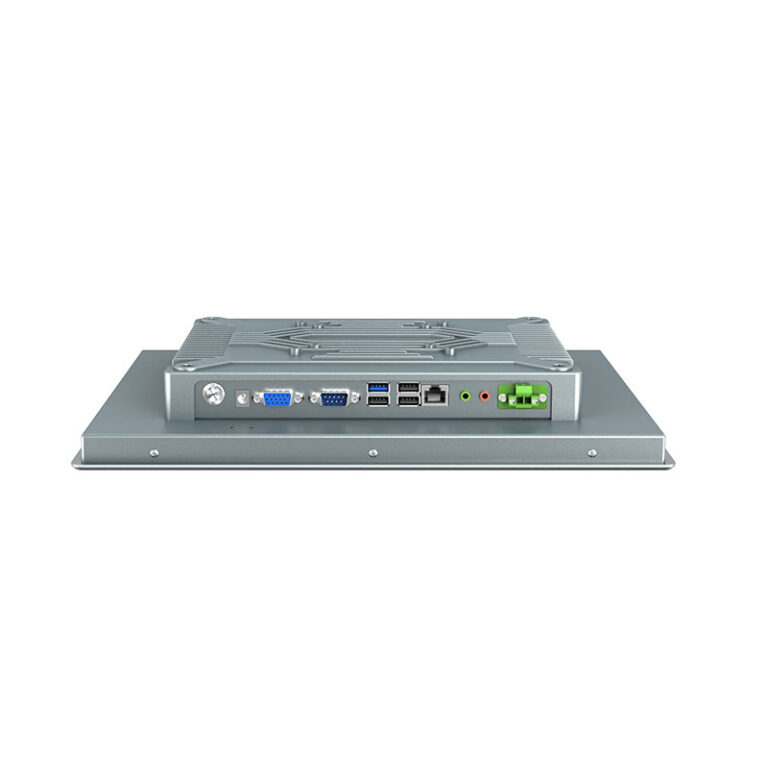

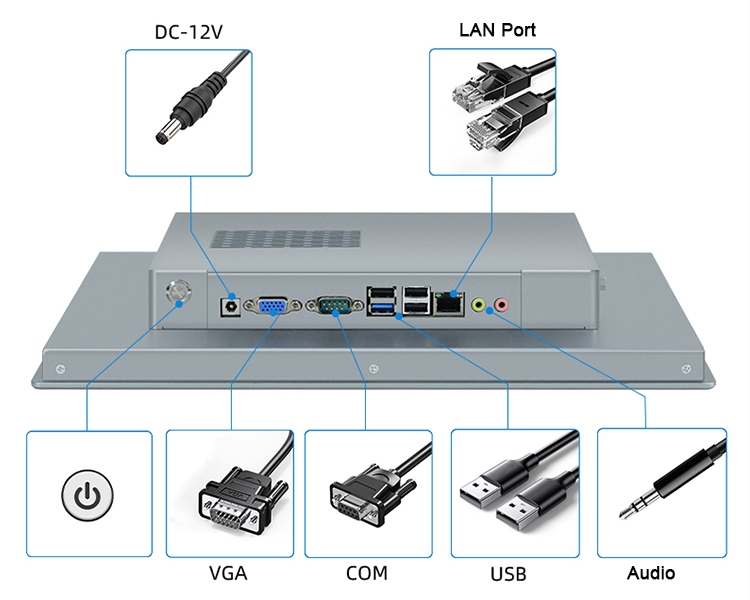

For Wide-Scope Compatibility – Easy System Integration: You can integrate TP-4800-x into your legacy SCADA and your next-generation Edge AI applications. Pinnacle has USB 3.2, USB-C, and 2.5 GB LAN for connectivity to the newest systems with high bandwidth requirements. Pinnacle also includes COM ports for serial communication with legacy devices, and GPIO for direct interaction with simple logic devices.
IPCmate has specialized in industrial computers, medical grade computers, rugged tablets for more than 20 years, contact us to get cutomized sollution.
